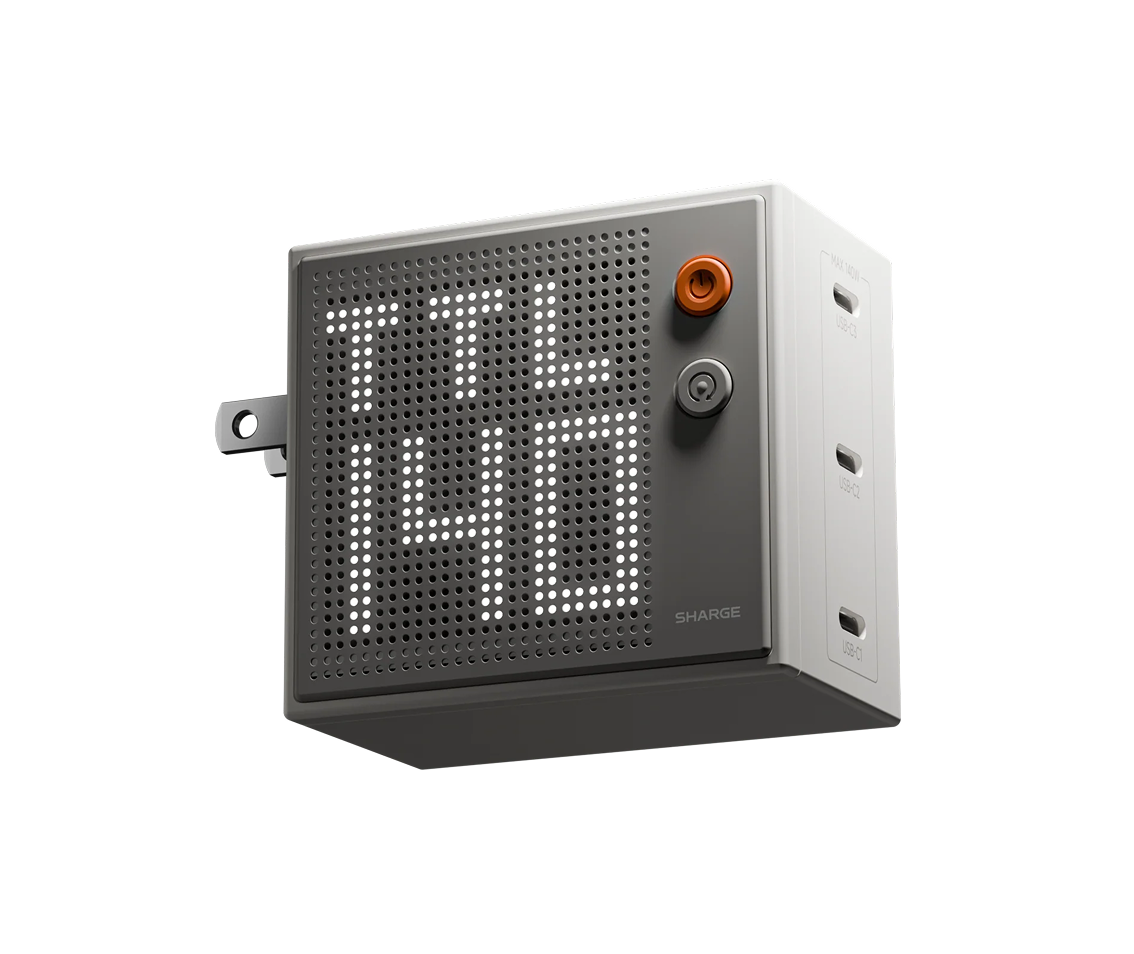

A charger is the one thing in a bag that never tells you anything. Sharge's Pixel 140 has a dot-matrix screen on its face, and it counts the watts leaving each port while they are leaving it.
Most bricks hide their arithmetic. This one publishes it. The Pixel 140 is a three-port GaN charger whose USB-C ports each run at 28 volts and 5 amps alone, one of the higher voltages USB Power Delivery 3.1 added, and 28 times 5 is where the 140 watt figure comes from. Plug in a second device and the brick re-cuts the budget in front of you: 100 watts and 30, or 67 and 67, or 30 and 100. Fill all three ports and it settles on 67, 30 and 30, or on 45, 45 and 30. The display can be rotated, so the numbers read the right way up whether the charger sits on a desk or hangs off a wall socket.
Underneath the screen it is built on fifth-generation gallium nitride with six layers of protection, and the protocol list runs long: PD 3.0, PPS at 5 amps, Quick Charge 4.0+, UFCS, SCP, AFC and FCP alongside PD 3.1. An older Android phone can therefore negotiate its own fast-charge standard rather than dropping back to a trickle. Input takes the full 100 to 240 volts, the prongs fold flat against the body, and the pins come in US or EU form, which together is most of what travelling asks of a charger. The same housing is also sold as the 100 watt Pixel 100, so the screen is not the thing you are paying the difference for.
- Designed in
- China
- Charging
- 140W total across three USB-C ports
- Dimensions
- 64 x 58 x 37.2 mm
- Weight
- 255 g
- Display
- Rotatable dot-matrix, per-port wattage
- Colours
- White or grey
- Power reserve
- 100 to 240 V input, folding prongs
Figures as published by the manufacturer. Source
