About

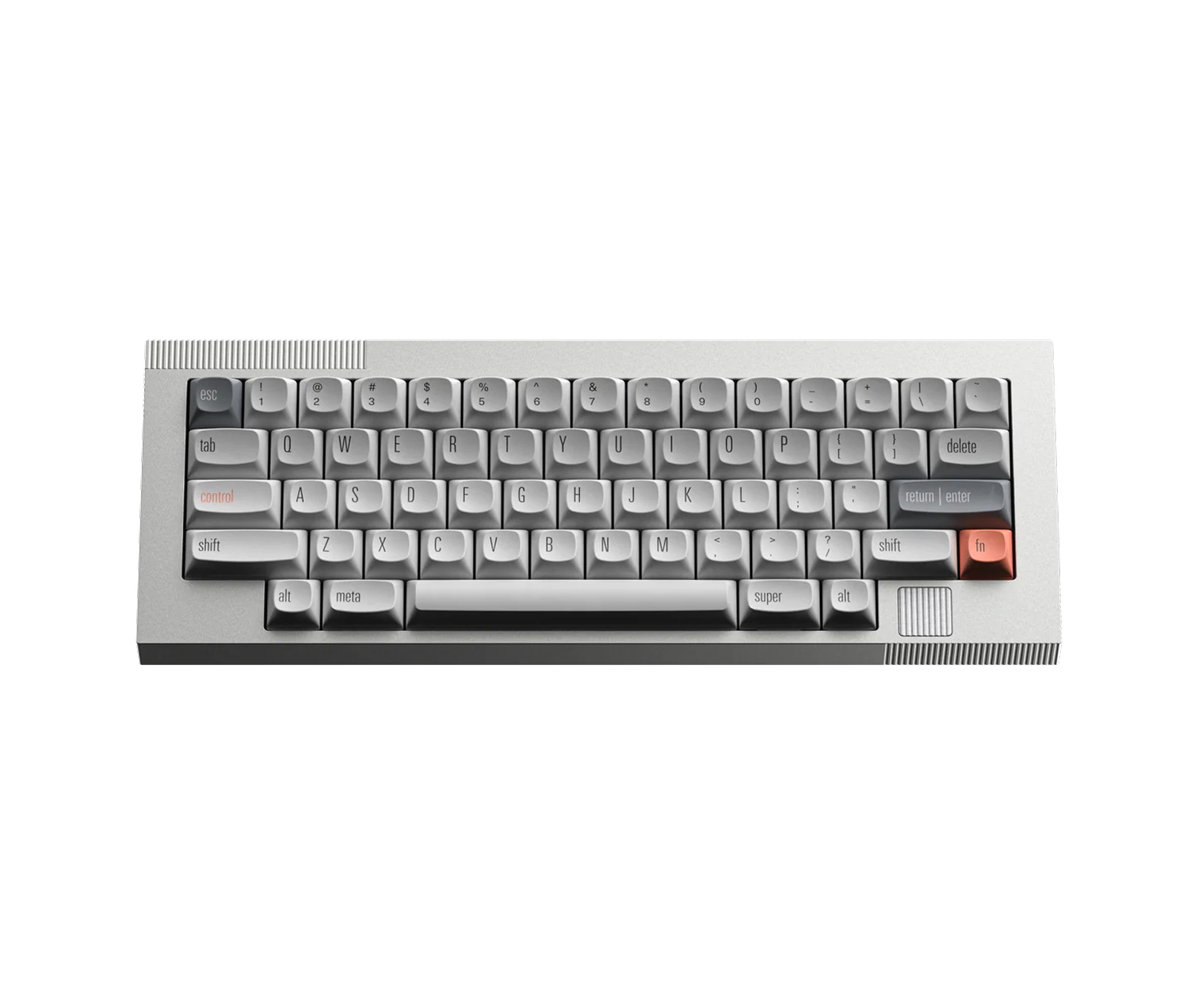

Take apart almost any enthusiast keyboard and the first thing you meet is a screwdriver and eight or ten screws holding a top case to a bottom case. Geistmaschine's ADA has none. It has no top and no bottom.
A gasket-mounted keyboard is normally a sandwich: two case halves bolted around a switch plate that floats on strips of foam between them. The ADA is milled from a single block of aluminium instead, and the plate and electronics slide into that unibody and lock against a magnetically attached stand at the back. Geistmaschine calls the arrangement the Single Slice Sandwich gasket mount, and has a patent pending on it. Pulling the L-Stand off is the entire disassembly. No tool. The stand also sets the typing angle, sold at 0, 5.5 and 7 degrees, so the tilt is a part you swap rather than a set of feet you flip.
The layout is HHKB, the arrangement Professor Eiiti Wada drew up, which puts Control where Caps Lock usually sits. Under the keys sit an Fr4 switch plate, a layer of PE film and Poron foam, and a 1.6 millimetre PCB available solderable or hotswap. This Graphic Edition wears a Soft Sandstone finish in Lunar Sand.
Remapping runs in PlaySerious, Geistmaschine's own app, which draws the board one to one and handles layers, tap-and-hold keys and macros by drag and drop. Switches, stabilisers, keycaps and a USB-C cable are not part of the kit. Geistmaschine will build the board for you, as a paid option, if you would rather not source them yourself.
- Designed & made in
- Germany
- Case
- Unibody aluminium, CNC machined from one block
- Finish
- Soft Sandstone, Lunar Sand
- Material
- Controls
- PlaySerious app: layers, tap-hold, macros
Figures as published by the manufacturer. Source
