Altar II

About

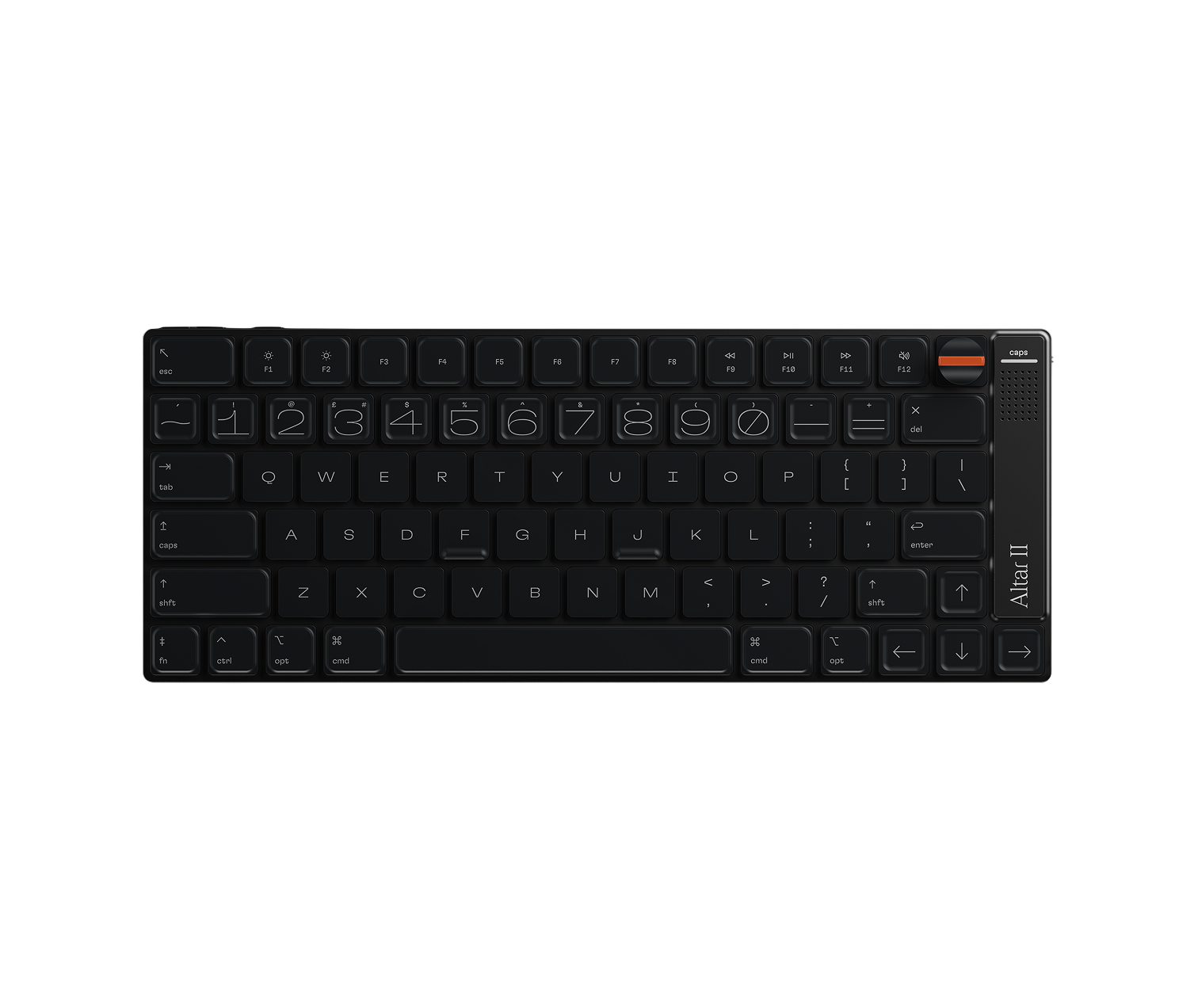

Apple's Magic Keyboard measures 10.09 mm and is not mechanical. Electronic Materials Office has built a fully mechanical board at 4.75 mm, which the company says makes the Altar II the thinnest in production.

A mechanical switch is tall for one reason: its return spring stands upright under the keycap. Altar II lays a preloaded tension spring on its side instead, inside a scissor switch built around two steel arms, and that change in geometry leaves 1.8 mm of key travel in a chassis under five millimetres. Actuation force is 40 gf. Under the keys, a silicone membrane separates the logic board from the machined aluminium monobody, and an oversize elastomer footpad sits below both, suspending the typing platform so the sound stays low and contained. A board this flat also holds the wrist closer to the desk, which is why there is no palm rest and no need for one.

The dial is the part you notice next. M-Dial clips on magnetically over a Hall effect sensor array: turn it for volume, click once to play or pause, twice to skip, three times to go back. A linear resonant actuator called Harmonic Synthesiser puts a tick under your finger as the dial turns, and taps the board when a Mac notification arrives. Two dial profiles come with it, and the drawings and 3D files are published, so anyone with a printer can make a third.

The backlight is long-wavelength red and runs off an ambient light sensor, so it wakes only in the dark rather than glowing through a bright afternoon. The keycaps are REGEN polymer with at least half recycled content, and the packaging is paper and sugarcane pulp. Reservations opened in August 2026, with a Kickstarter starting on 10 November 2026 and delivery expected in early summer 2027.

Designed in
United Kingdom
Dimensions
299 x 116.5 x 4.75 mm, 75% layout
Materials
Battery
Up to 30 days with normal use
Fast charge
Two minutes on a USB-C port gives up to two days of use
Controls
Magnetic M-Dial over Hall effect sensor array

Figures as published by the manufacturer. Source
